There was an enormous wait time to get the fresh bitstream from each iteration, and I thought to instead build a Python previewer which takes that assembly source file, Tomato OS, and renders the full experience. This way, I don't need to take a full trip to the FPGA for each iteration. I have been wondering why I didn't even think of this, but again it was only necessary until today, so it's fine.
Now, instead of discarding this or keeping this virtual render sitting in the repo unused, I am integrating it into the website so anyone can see what the FPGA would render, pixel for pixel. It is an amazing outcome for an unrelated problem I was solving.

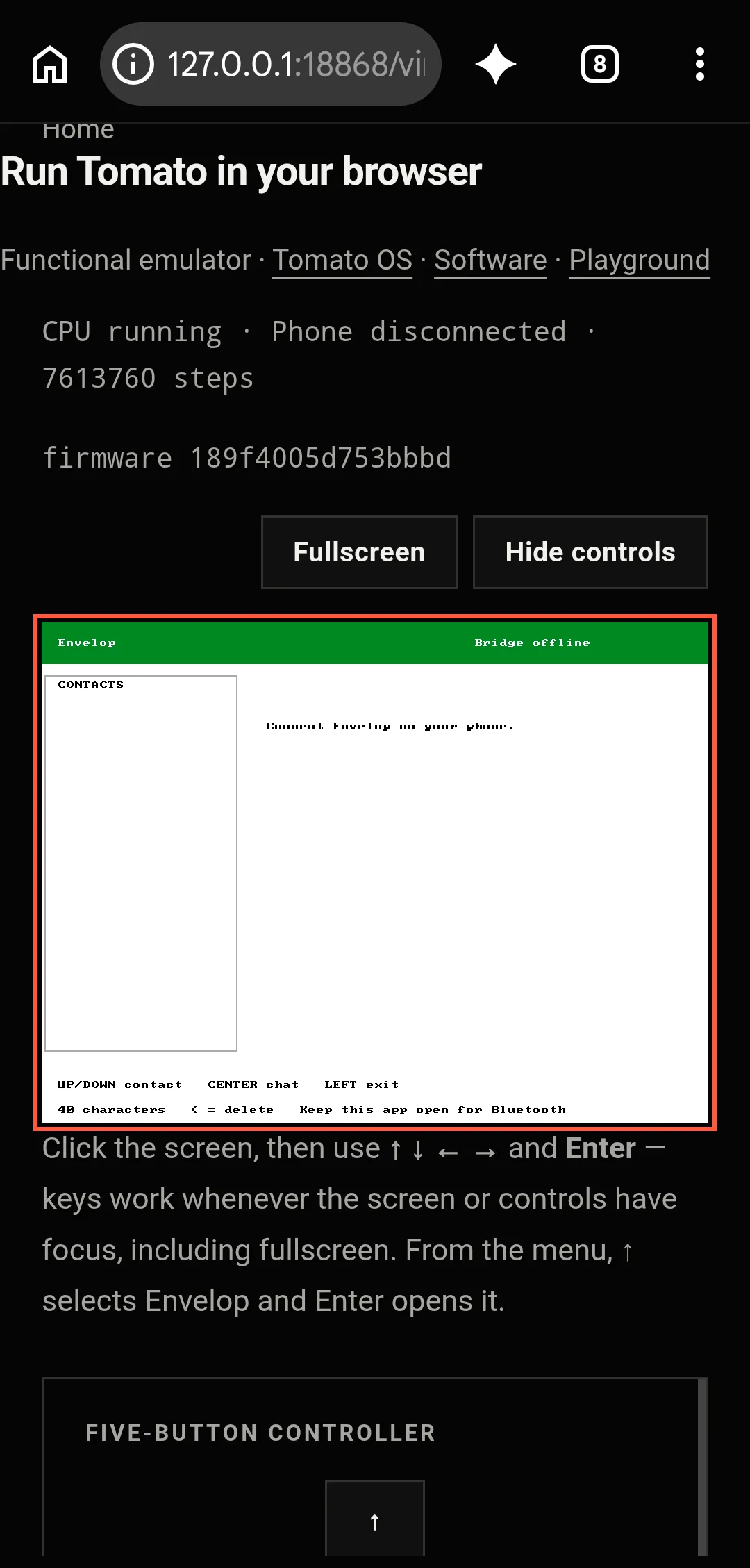

Browser emulation · current OS image with simulated peripherals and an offline bridge, shown at a real phone viewport; not FPGA hardware.
It's live. web/virtual.html is ready — run it with cd web && npm run serve, open /virtual.html, and you're using Tomato OS (menu, games, Envelop + demo phone) with real firmware executing in the tab.
This follows Synthesis Bypass and Envelop — Tomato gets a message app.
What got built
| Piece | What it does |
|---|---|
tools/build_web_image.py — the in-between script | OS assembly stays the single source of truth; it repacks derived artifacts only: 16,346 mem words + 8 microcode planes (the same .vh files the RTL includes) + font + palette + packed wallpaper = one 187KB web/data/tomato-os.bin, plus a tomato-os.json manifest of source hashes. --check mode fails on stale data. |
web/js/tomato-cpu.js — the CPU | Table-driven decode, dual-LUT ALU (including the quirky top-bit V), shifter/muldiv, byte lanes, banked regs, MMIO, tile RAM, and a line-for-line port of the ACI-mailbox radio model, so the firmware's BLE path runs unmodified. DOM-free, so Node tests it directly. |
web/virtual.html + web/js/virtual.js | Broadsheet page, canvas renderer, D-pad + keyboard, demo-phone panel, firmware build id in the byline, honest "functional emulator, behavior not timing" label. |
Clear placement: first link in the homepage #running section, primary CTA on os.html, plus software.html and sitemap.
Proof it's the real machine
web/tests/tomato-emu.mjs: 9 programs with the exact RTL-bench expects (counter through kb_mmio — which caught one genuine TB-vs-hardware difference I documented in the test), plus full OS sessions: boot → menu → Envelop → demo contacts → greetings on two contacts → disconnect. Whole web suite: 80/80 green, including a freshness test that re-hashes every source file so a stale image can't ship.
Two things to know
- Game speed is virtualized off the ms timer, so it's true speed by construction.
- Rapid-fire input mid-BLE-transmit can still clobber an in-flight frame — that's firmware behavior worth a future
envelop_lite.slook, not a web bug.
Also, to resolve the long hours of wait time, I am taking time to reuse caches. I was seemingly rebuilding from scratch, as I just discovered. Cache builds are significantly faster and in fact resolve to the same 3 mins 55 seconds I knew of.
